"FA-SDR-TRX": an I/Q-based SDR transceiver kit from the German "Funkamateur"
HAM-Radio magazine


Just got the parcel today (01-June-2010) and looked at the content.

Here are some pictures on what was inside the box:

All parts laid out on the table.  Starting with the assy documents CD (low left side and
proceeding clockwise), "FA-SY 1" synthesizer (SI570 based), 1 watt linear amp and
parts, pre-drilled housing, SDR TRX main PCB and parts.

All of the SMT parts are already soldered onto the PCB's. THT parts still need to be
soldered and in case of coils/transformers need to be assembled first.

FA SDR TRX all


Optional housing for the kit (nicely done and professional looks):

FA SDR TRX housing frontFA SDR TRX housing rear

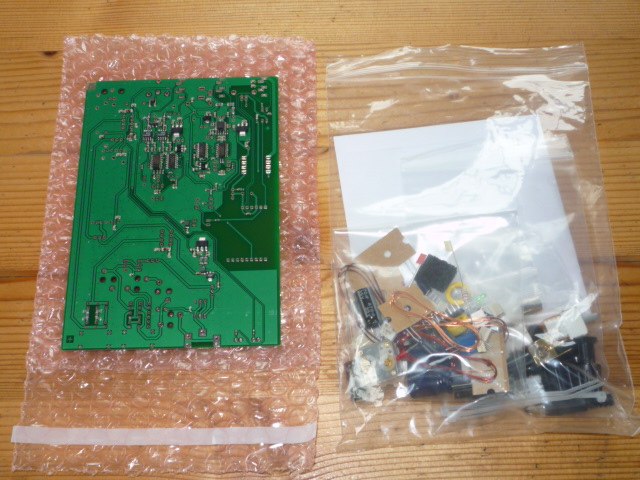

Main TRX PCB (note that the SMT parts are pre-installed)

FA SDR TRX main PCB

Main PCB detail: SMT parts already soldered to the PCB.
FA SDR TRX main PCB detail


1 watt linear amplifier PCB and parts:
FA SDR TRX PA

1 watt amplifier detail: again, all SMT parts already soldered to the PCB.
FA SDR TRX 1 watt PA detail
